Mobile Home Specification – Ground works and Foundations

Groundworks

  • We don’t conduct ground works directly but we do provide drawings and help project manage.

  • We usually recommend a steel mesh reinforced concrete slab foundation min depth 200mm.

  • Our Mobile Homes sit on a single row of breeze blocks laid flat around the perimeter of the structure.

  • Waste pipes are normally located under/in the slab.

As mobile home manufacturers we produce the homes and do NOT conduct ground works.

We don’t conduct groundworks or locating the services (waste, water, electrics, gas/oil) to the site location. This are always cheaper and easier with a local firm. We provide a setting out diagram for the basic size of the slab and suggested depths, although these are determined by the commissioned ground work company.

Trying searching for a local company on check-a-trade or yell.com. Just email a section of companies the diagram we provide.

Course of Block Work:

Mobile homes build with our methodology can’t site directly on the base. We require min. 1 course breeze blocks laid flat around the perimeter of the build and a line down the center. The ring-beam of the timber chassis sits on the breeze blocks, enabling the space for a steel cradle or straps to be positioned under the home, allowing the structure to be lifted by a crane.

Drawings Provides. Size required and suggested depths:

For each new home we provide a setting out diagram for the size of the slab, this is slightly smaller than the actual size of the home. After the batten and cladding is added, the exterior wall sits just over the edge of the slab. We suggest concrete raft slab foundation of min depth 200mm although the actual depth will be determined by the conditions of the site, soil and bedrock.

Services and Drainage:

Your setting out diagram will show the required waste pipe locations. The dranage pipes should be laid under/in the slab, usually in just 1-2 runs, with stack pipes coming up of the main pipe in locations indicated in the drawing. Although they can also be sited externally. We require the stack pipes to be 2ft above ground level (see images). For services there will often just be one point, in a kitchen or utility room, where the water, gas and electric services are ducted.

Prices:

Please note the cost of the actually slab usually accounts for around 60-70% of the actual ground works costs as locating the services to the site will often take 30-40% of the budget. The price for services is specific to each site and home. For example costs of concrete slabs visit our webpage Ground Works Concrete Foundation General Prices

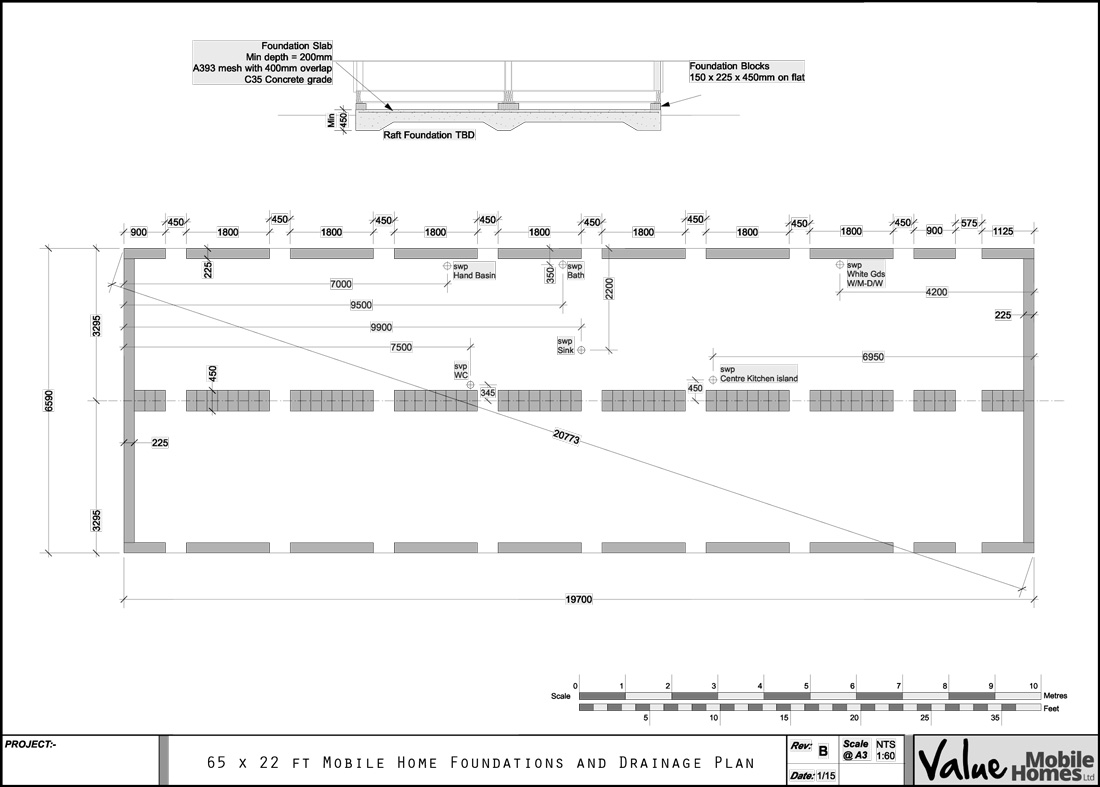

Example Setting Out Diagram for a 65 x 22 Ft Mobile Home:

Foundations

Mobile Home Specification: Ground Works and Foundations at Value Mobile Homes Ltd

Ground works and foundations are critical components in the installation of mobile homes. At Value Mobile Homes Ltd, we specialize in manufacturing mobile homes and provide comprehensive guidance and support for ground works and foundation setup, though we don’t conduct these works directly. This guide explains our approach and recommendations for laying the groundwork for your mobile home.

Groundworks: Preparation and Project Management

  1. Role of Value Mobile Homes Ltd:
    • We provide detailed drawings and assist in project management.
    • However, we do not conduct ground works directly.
  2. Recommended Foundation:
    • A steel mesh reinforced concrete slab foundation with a minimum depth of 200mm is typically recommended.
  3. Local Firms for Groundworks:
    • Groundworks and service location are best handled by local firms. They are generally more cost-effective and familiar with local ground conditions.
    • Resources like Check-a-trade or Yell.com can be useful for finding reputable local companies.

Course of Block Work and Mobile Home Siting

  1. Breeze Blocks for Support:
    • Our mobile homes sit on a single row of breeze blocks laid flat around the perimeter of the structure and a line down the center.
    • This arrangement facilitates the positioning of a steel cradle or straps under the home for lifting by a crane.
  2. Providing Drawings:
    • We provide a setting out diagram for the basic size of the slab and suggested depths.
    • The actual depth is determined by the commissioned ground work company based on site conditions.

Services and Drainage

  1. Waste Pipe Locations:
    • The setting out diagram includes required waste pipe locations.
    • Drainage pipes are typically laid under or in the slab, with stack pipes emerging at indicated locations.
  2. Utilities Connections:
    • Services (water, gas, electricity) are usually ducted to a single point, often in a kitchen or utility room.

Prices and Budget Considerations

  1. Cost Distribution:
    • The cost of the concrete slab usually accounts for about 60-70% of the ground works costs.
    • Locating services to the site generally takes up 30-40% of the budget.
  2. Site-Specific Pricing:
    • The price for services is specific to each site and home.
    • For general prices of concrete slabs, refer to our webpage on Ground Works Concrete Foundation General Prices.

Example Setting Out Diagram

  • For a typical 65 x 22 Ft mobile home, we provide specific setting out diagrams that detail the size of the slab, which is slightly smaller than the actual size of the home. After the batten and cladding is added, the exterior wall extends just over the edge of the slab.

At Value Mobile Homes Ltd, we understand the importance of a solid foundation for your mobile home. While we focus on manufacturing top-quality mobile homes, we also provide essential guidance and resources to ensure that the groundwork and foundation phase of your mobile home setup is successful. By coordinating with experienced local firms and utilizing our detailed diagrams and recommendations, you can lay a strong and reliable foundation for your new mobile home.
